This lens boasts a 10x zoom range, effortlessly handling a variety of scenarios from a wide 12mm angle of view to a 120mm close-up.It integrates commonly used focal lengths, allowing you to capture inspiration seamlessly in the ever-changing creative environment without changing lenses, ensuring you don't miss a single captivating moment.

This lens features a professional parfocal design, which maintains precise focus throughout the entire zoom range. This allows videographers to adjust focal length freely without losing focus, ensuring stable and sharp footage for a smoother, more reliable workflow.

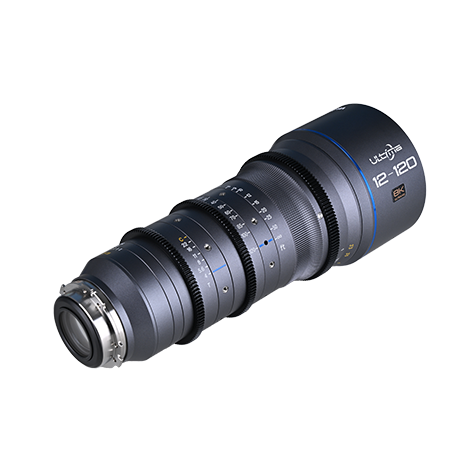

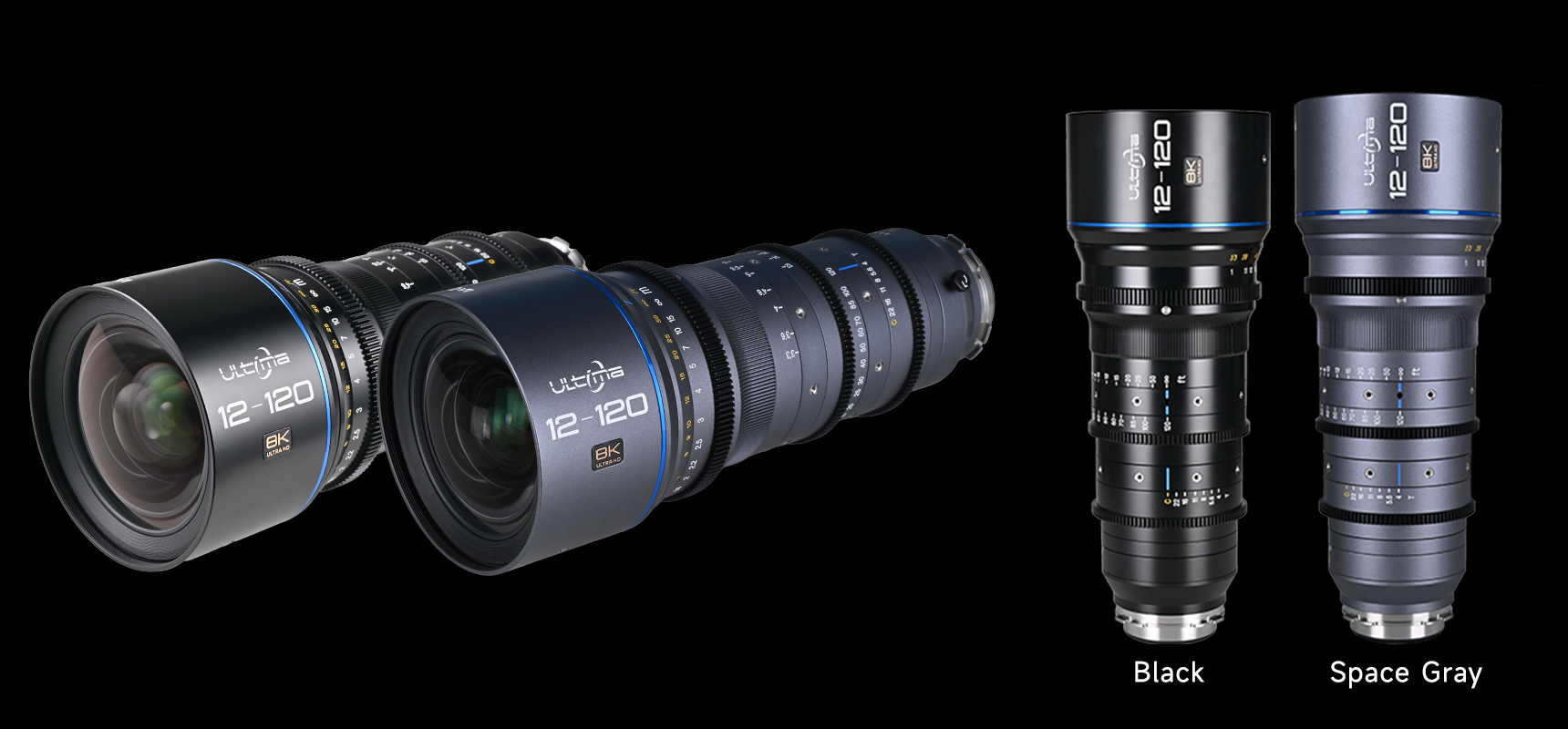

Note: The Space Gray version is approximately 10% lighter.

This lens excels at minimizing focus breathing. The angle of view remains virtually unchanged during focus adjustment, ensuring stable framing and enabling exceptionally smooth focus transitions. This makes it an ideal, professional tool for seamless video storytelling.

The constant T4.0 aperture excels in low-light conditions, delivering images with significantly reduced noise and superior quality. Additionally, the lens is equipped with full aperture closure, meeting the need for precise light control in professional scenarios like studio broadcasting.

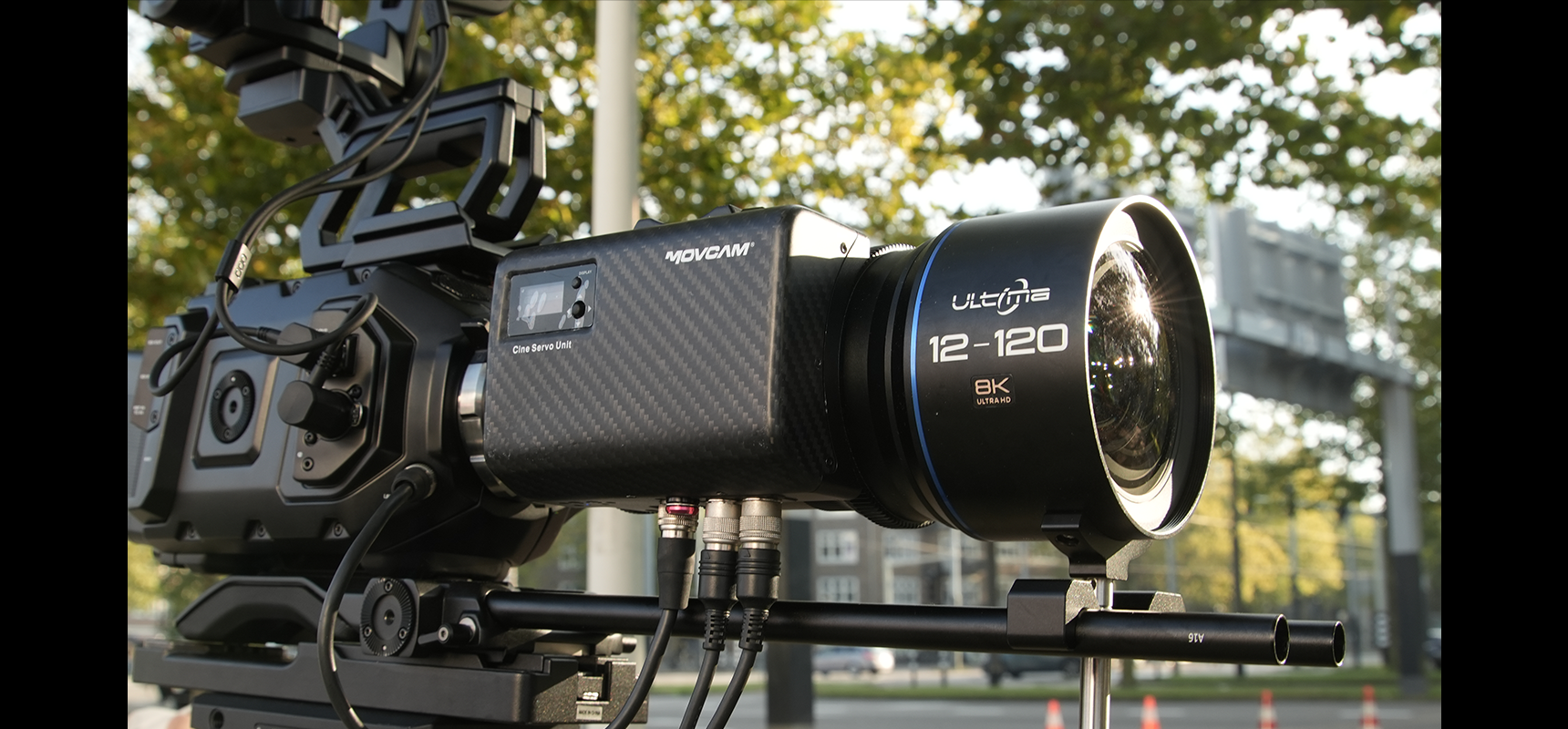

The dedicated servo pack enables precise motor-driven control over both focus and zoom. This optional accessory is designed to streamline your video workflow, allowing smoother focus pulls and zoom transitions for greater creative freedom.

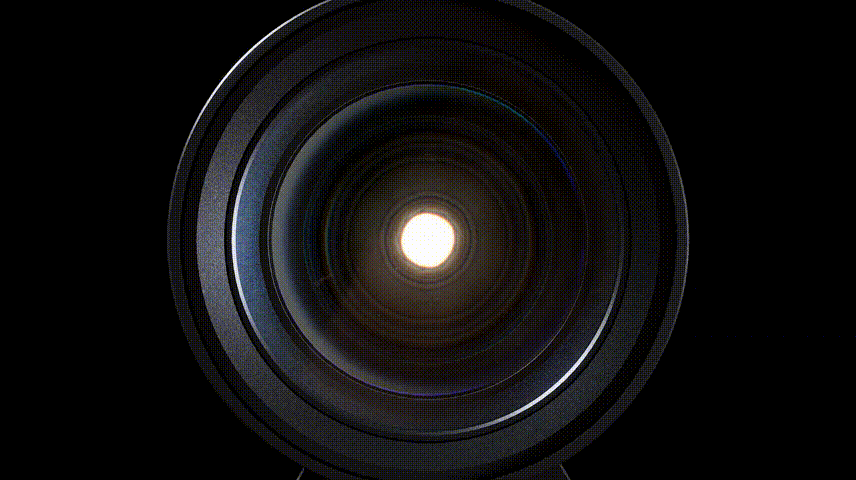

The lens supports full aperture closure. In studio or live multi-camera setups, this enables seamless switching and a perfectly synchronized, clean black field between shots, ensuring reliable performance for every critical recording.

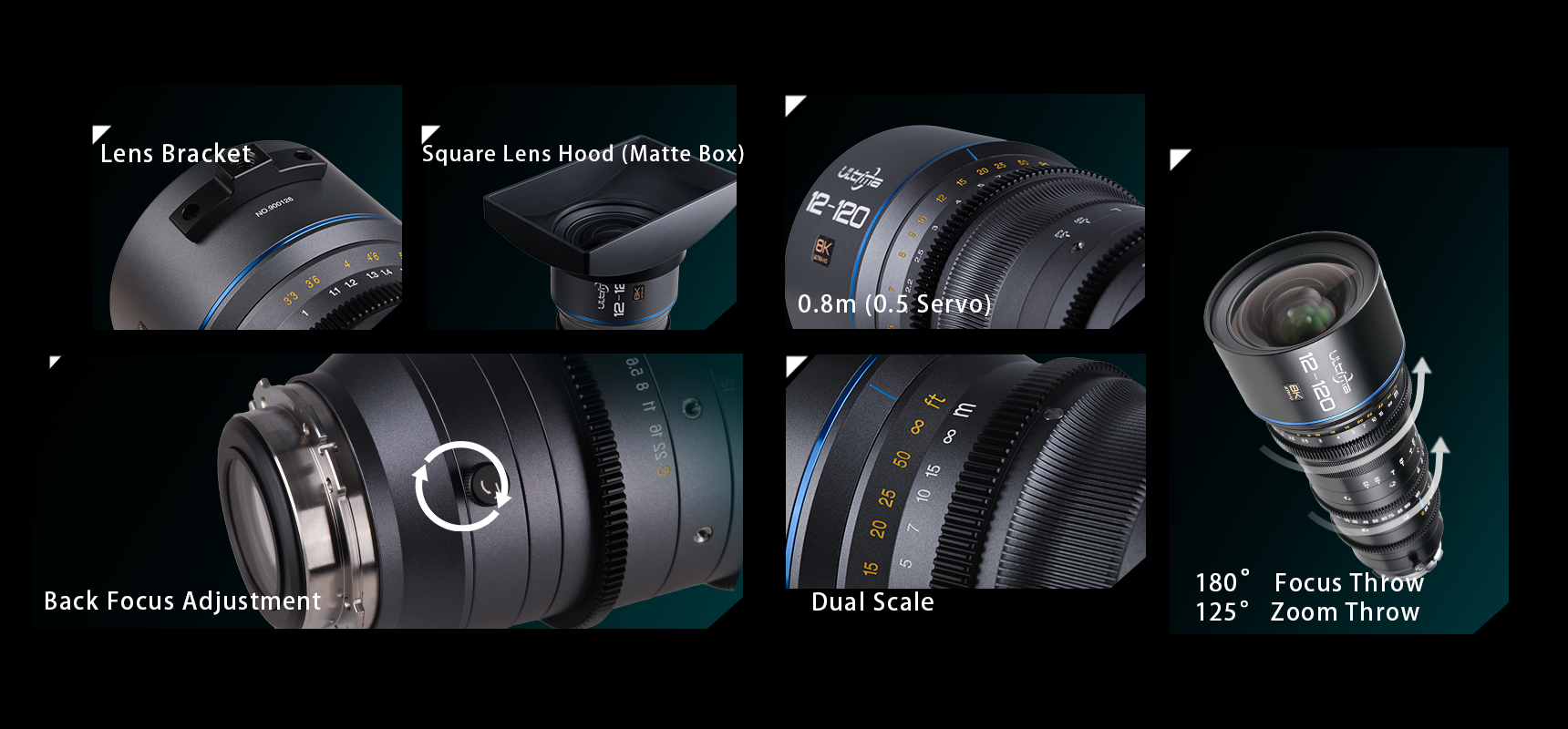

Professional Cine Housing

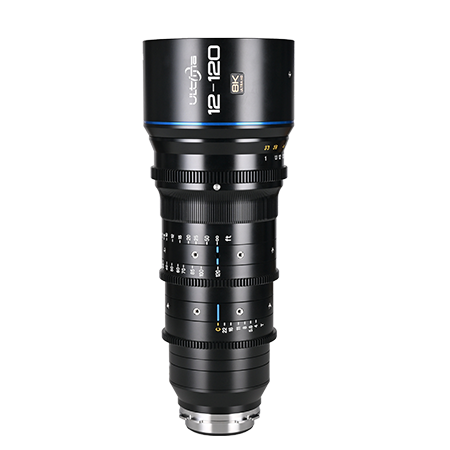

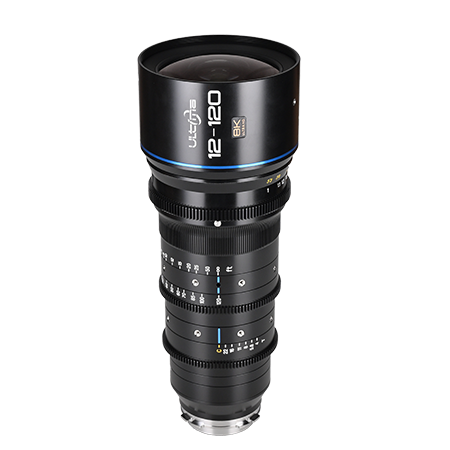

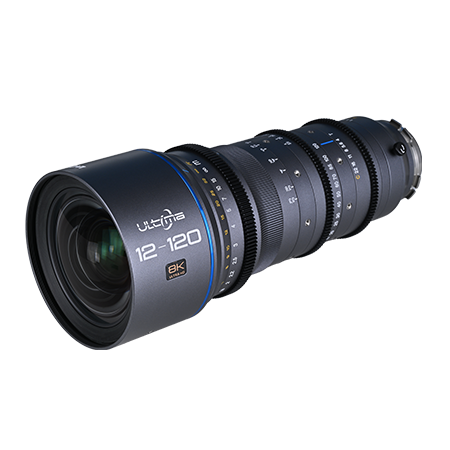

| Name | Ultima S35 12-120mm T4 Zoom |
| Format | S35 |
| Focal Length | 12-120mm |
| Aperture Range | T4.0-22-C |
| Angle Of View | 13.7°-100.5° |
| Lens Structure | 28 elements in 20 groups |
| Aperture Blades | 9 |
| Focus Throw | 180° |
| Distance Scale | Metric & Imperial (Dual Scale) |
| Aperture Throw | 35.5°-C(42°) |
| Zoom Ratio | 10X |
| Zoom Throw | 125° |
| Image Circle Diameter | Ø29.6mm |
| Geer Mod | 0.8m |
| Min. focusing Distance | 100cm |
| Max. Magnification | 0.165x |
| Focus Type | Manual (MF) |
| Largest Diameter | Ø114mm |
| Dimensions | Ø114mm*282.3mm |
| Weight | ~3200g (Excluding front and rear lens caps.) |
| Mounts | PL |
